| Place of Origin: | Shandong , China |
|---|---|
| Brand Name: | Chengshun |
| Certification: | CE, ISO, SGS, etc. |
| Model Number: | YXB65-185-555, YXB66-240-720, YXB65-170-510, YXB46-200-600, YXB40-185-740, etc. |
| Zinc Coat: | 20-275g/m2 | Surface Treatment: | Galvanized, Coated, Painted, Oiled, Dry |
|---|---|---|---|
| Shape: | Corrugated Sheet, Angled Shape | Types: | Open Floor Bearing Plate, Shrinkable Floor Bearing Plate, Closed Floor Bearing Plate |
| Material Grade: | SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z,SGCC/CGCC/DX51D+Z,SGCC,SGCC/DX51D+Z/SGLC | Thickness: | 0.8mm, 1.0mm, 1.2mm, Or Customized |
| Width: | 688mm-940mm, Or Customized | Height: | 51mm-76mm, Or Customized |
| High Light: | 780mm Corrugated Steel Roofing Sheets,Corrugated Steel Roofing Sheets 22 Gauge,22 Gauge Galvanized Corrugated Metal Roofing |
||
FLOOR DECK GALVANIZED STEEL CORRUGATED ROOFING SHEETSGalvanized steel roofing sheets for floor deck are the steel plates formed to support the floor concrete, also known as the floor bearing plate, steel bearing plate. Galvanized steel floor bearing plate is divided into three generations: open floor bearing plate, shrinkable floor bearing plate, closed floor bearing plate. The composite board of profiled steel plate and concrete for floor bearing is used in the residential building of steel structure. It is generally galvanized steel corrugated plates with fireproof coating on the surface.
Our company is a professional galvanized steel corrugated sheet manufacturer with ISO CE certificates and big factories of 50 000 tons per month productivity. We supply galvanized steel roofing sheets from zinc coat Z30 to Z275gsm, including hot dipped galvanized and electro-galvanized roofing sheets, T shaped IBR, wave shaped, trapezoidal, angled shape, glazed tile and other types available. We have large stock for fast delivery and offer free sample and customization service. Main markets distributing in North America, South America, Africa, Southeast Asia as well as Oceania, our company built stable cooperation with customers from more than 100 countries and regions.
PARAMETER OF FLOOR DECK GALVANIZED ROOFING SHEETS
| Product Name | Glavanized steel corrugated roofing sheet | |||
| Thickness | 0.12-1mm or customized | |||
| Model Number |
YXB76-305-915, YXB51-305-915, YXB75-200-600, YXB50-250-750, YXB35-125-750; YXB51-200-600; YXB65-185-555, YXB66-240-720, YXB65-170-510, YXB46-200-600, YXB40-185-740, etc. |
|||
| Effective Width | 360mm, 470mm, 475mm, 490mm, 600mm, 605mm, 608mm, 666mm, 675mm, 750mm, 760mm, 820mm, 840mm, 875mm, 900mm, 950mm, 960mm, 980mm, 1000mm, 1050mm, 1025mm, etc. 4'ft, 6'ft, 8'ft, 9'ft, 10'ft, 12'ft,etc. |
|||
| Length | 1000-12000mm or as required | |||
| Zinc Coat | 30-275g/sm | |||
| Tolerance | ±1% | |||
| Types | Round bean emobossed floor deck, Arrow sembossed floor deck, etc. | |||
| Bundle Weight | 3-8 tons or as required | |||
| Surface Spangle | big spangle, regular spangle, small spangle, minimum spangle, zero spangle. | |||
| Surface Treatment | Chromate, Oiled, Lacquer Seal, Phosphating, Ant-ifinger, etc. | |||
| Service Life | 20-30 years | |||
| Application | Building industry 1) Roof 2) Wall 3) Ceiling 4) Fence Household appliance Container, etc. |
|||
| Material Grade | DX51D DX52D DX53D DX54D SGCC, SGCH,SGC340 SGC400 SGC440 SGC490 SGC570 SGHC SGH340 SGH400 SGH440 SGH490 SGH540 S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD Q235B Q345B Q420C Q460C SS400 SS540 S235 S355 A36 A572 G50 G60 |
|||
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS etc | |||
| Coating Process | Top: Double Coated & Double Drying Bottom: Double Coated & Double Drying, Single Coated & Double Drying |
|||
| Supply Ability | 500 000 tons/month | |||
| Delivery Time | Stock inventory goods: within 5 days, Customized product: 7-15 days for customized size |
|||
| Packing | Export standard package or as required waterproof paper+plastic film+iron packing+strip bunding+wooden or steel pallet |
|||
| Loading Port | Tianjin, Qingdao, Shanghai or Guangzhou. | |||
PRODUCT DETAIL DISPLAY OF FLOOR DECK GALVANIZED ROOFING SHEETS

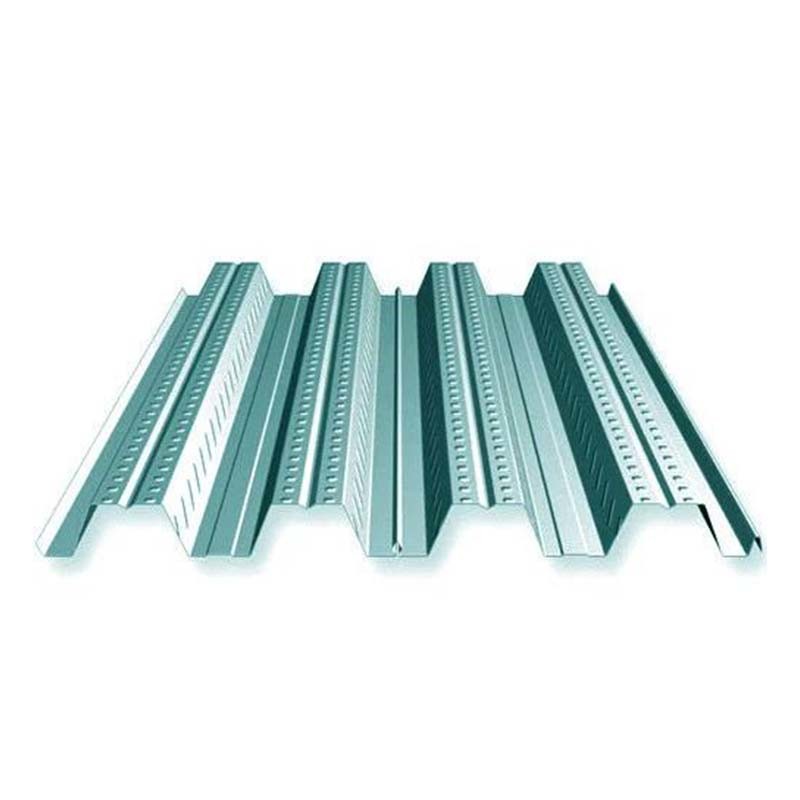

Round Bean Type Floor Deck Galvanized Corrugated Roofing Sheets

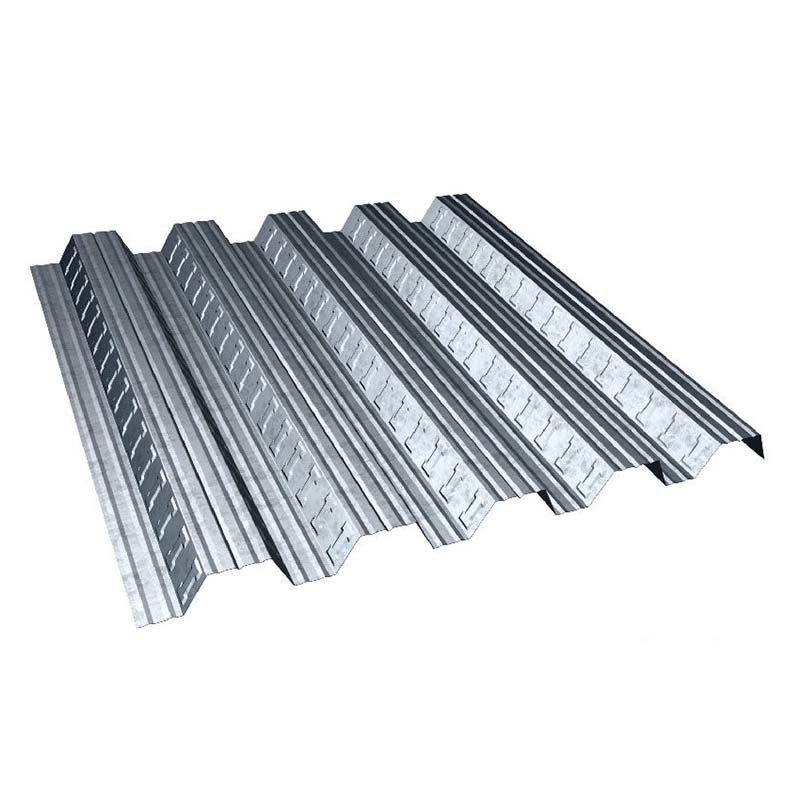

Arrow Emobossed Type Floor Deck Galvanized Corrugated Roofing Sheets
Large Stock Floor Deck Galvanized Corrugated Roofing Sheets
PACKAGING OF FLOOR DECK GALVANIZED ROOFING SHEETS
QUALITY TEST AND WEIGHING OF FLOOR DECK GALVANIZED ROOFING SHEETS
APPLICATION OF FLOOR DECK GALVANIZED ROOFING SHEETS
PRODUCTION PROCESS OF FLOOR DECK GALVANIZED ROOFING SHEETS
COMPANY INTRODUCTION OF FLOOR DECK GALVANIZED ROOFING SHEETS
CERTIFICATE OF FLOOR DECK GALVANIZED ROOFING SHEETS
FAQ1. Q: Are you a factory or trading company?
A: We are a Chinese manufacture of steel pipes with both factories and trading companies.
2. Q: Can I get samples before order?
A: Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.
3. Q:what is your delivery time?
A:The time of delivery is usually around 1 month. We can send out in 3 days if it has stock.
4. Q:What is your payment terms?
A:Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble EXW, FOB, CFR, CIF.
5.Q:What do your factory do regarding quality control?
A:We have gained ISO, CE,API authentication. From material to products, we inspect each process to keep good quality.
6. Q:How can you ensure what I got will be good?
A: Alibaba will act as our guarantor. If the product fails the inspection before leaving the factory, you can refuse to accept the goods.
7. Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ; we respect every customer as our friend and we sincerely do business and make friends with them. No matter where they come from.
