| Place of Origin: | Shandong, China |
|---|---|
| Brand Name: | Chengshun |
| Certification: | AiSi, ASTM, bs, DIN, GB, JIS |
| Model Number: | YX35-130-780, YX18-76-836/988, YX51-360, YX60-490, YX25-210-680, YX25-200-1000, etc. |
| Material Grade: | DX51D+Z | Zinc Coating: | Z30-Z275g/m2 |
|---|---|---|---|
| Spangle Type: | Zero Spangle, Mini Spangle, Small Spangleregular Spangle, Etc. | Special Usage: | High Corrosion Resistance Corrugated Sheet |
| Surface Treatment: | Galvanized,Skin-passed/non Skinpassed/chromated | Application: | Construction,Sandwich Panel,roofing Sheet,Container Plate,Rolling Shutter |
| Length: | 1~18m Or As Per Your Request | Thickness: | 0.12-1 Mm Or Customized |
| High Light: | Dx51d Galvanized Roofing Sheets,Galvanized Roofing Sheets 0.12mm,0.55mm Corrugated Steel Plate |
||
DX51D+Z GALVANIZED STEEL CORRUGATED ROOFING SHEETSGalvanized steel roofing sheets DX51D+Z are the pure zinc coated hot dipped galvanized corrugated plates beased on hot rolled substrate. At present, the most common galvanized roofing sheets in the market are the Japanese standard SGCC and the European standard DX51D and DC51D. In DX51D, X means the substrate is hot rolled sheets, in DC51D, C means the substrate is cold rolled sheets, 51 means the steel material grade, 51# is the most common, there are also 52#, 53# and 54#.
Our company is a professional galvanized steel corrugated sheet manufacturer with ISO CE certificates and big factories of 50 000 tons per month productivity. We supply galvanized steel roofing sheets from zinc coat Z30 to Z275gsm, including hot dipped galvanized and electro-galvanized roofing sheets, T shaped IBR, wave shaped, trapezoidal, angled shape, glazed tile and other types available. We have large stock for fast delivery and offer free sample and customization service. Main markets distributing in North America, South America, Africa, Southeast Asia as well as Oceania, our company built stable cooperation with customers from more than 100 countries and regions.
PARAMETER OF DX51D+Z GALVANIZED ROOFING SHEETS
| Product Name | Glavanized steel corrugated roofing sheets | |||
| Thickness | 0.12-1mm or customized | |||
| Model Number | YX25-210-840/1050, YX28-205-820/1025, YX25-250-1000, YX30-245-980, YX35-125-750/875, YX35-238-950, YX35-190-760/950, YX35-280-840, YX38-300-900, YX51-410-820, YX51-360, YX60-490, YX63-475, YX65-470, YX71-380-760, YX75-605, YX92-337.5-675, YX130-300-600, YX114-300-600, YX114-333-666, etc. |
|||
| Effective Width | 360mm, 470mm, 475mm, 490mm, 600mm, 605mm, 608mm, 666mm, 675mm, 750mm, 760mm, 820mm, 840mm, 875mm, 900mm, 950mm, 960mm, 980mm, 1000mm, 1050mm, 1025mm, etc. 4'ft, 6'ft, 8'ft, 9'ft, 10'ft, 12'ft,etc. |
|||
| Length | 1000-12000mm or as required | |||
| Zinc Coat | 30-275g/sm | |||
| Tolerance | ±1% | |||
| Types | Wave shape, Trapzoidal T shape, Angled shape, etc. | |||
| Bundle Weight | 3-8 tons or as required | |||
| Surface Spangle | big spangle, regular spangle, small spangle, minimum spangle, zero spangle. | |||
| Surface Treatment | Chromate, Oiled, Lacquer Seal, Phosphating, Ant-ifinger, etc. | |||
| Service Life | 20-30 years | |||
| Application | Building industry 1) Roof 2) Wall 3) Ceiling 4) Fence Household appliance Container, etc. |
|||
| Material Grade | DX51D+Z | |||
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS etc | |||
| Coating Process | Top: Double Coated & Double Drying Bottom: Double Coated & Double Drying, Single Coated & Double Drying |
|||
| Supply Ability | 500 000 tons/month | |||
| Delivery Time | Stock inventory goods: within 5 days, Customized product: 7-15 days for customized size |
|||
| Packing | Export standard package or as required waterproof paper+plastic film+iron packing+strip bunding+wooden or steel pallet |
|||
| Loading Port | Tianjin, Qingdao, Shanghai or Guangzhou. | |||
PRODUCT DETAIL DISPLAY OF DX51D+Z GALVANIZED ROOFING SHEETS

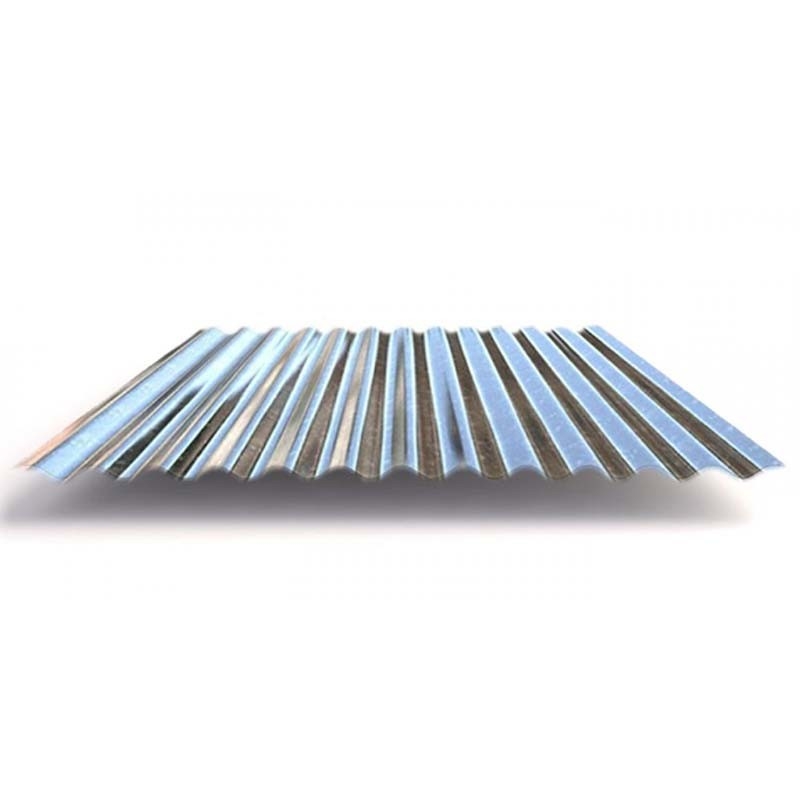

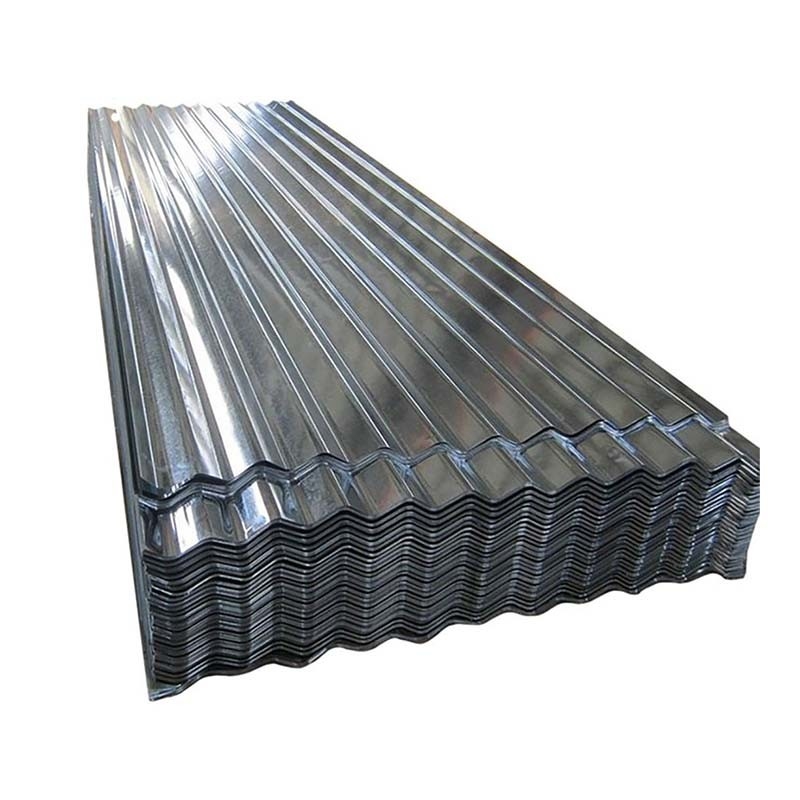

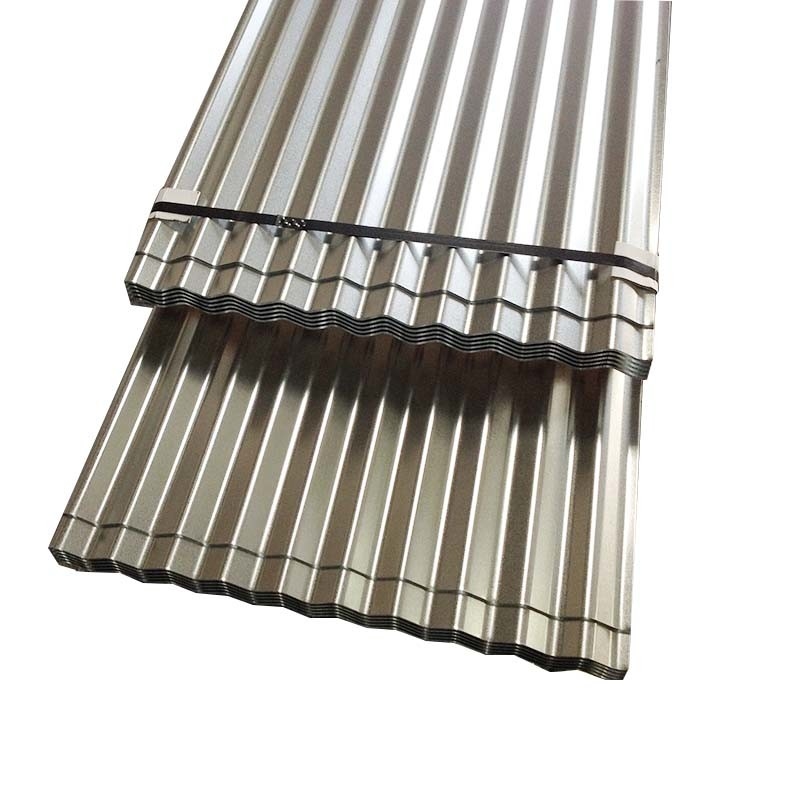

Wave Shaped Dx51D+Z Galvanized Steel Roofing Sheets

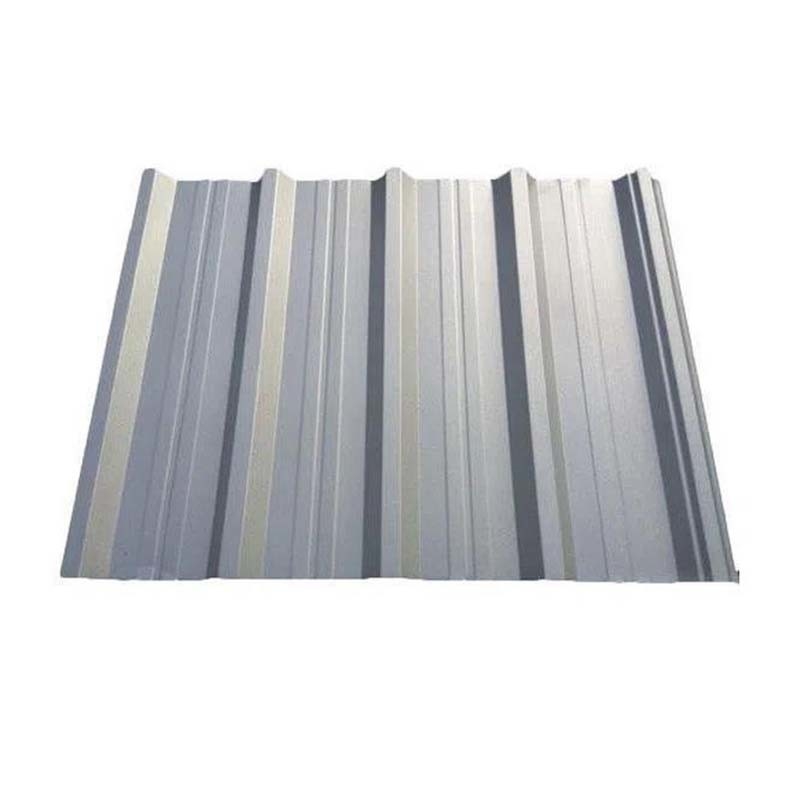

Trapezoidal T Shaped Dx51D+Z Galvanized Steel Roofing Sheets
Angled Shape Dx51D+Z Galvanized Steel Roofing Sheets
PACKAGING OF DX51D+Z GALVANIZED ROOFING SHEETS
QUALITY TEST AND WEIGHIING OF DX51D+Z GALVANIZED ROOFING SHEETS
APPLICATION OF DX51D+Z GALVANIZED ROOFING SHEETS
PRODUCTION PROCESS OF DX51D+Z GALVANIZED ROOFING SHEETS
COMPANY INTRODUCTION OF DX51D+Z GALVANIZED ROOFING SHEETS
CERTIFICATE OF DX51D+Z GALVANIZED ROOFING SHEETS
FAQ1. Q: Are you a factory or trading company?
A: We are a Chinese manufacture of steel pipes with both factories and trading companies.
2. Q: Can I get samples before order?
A: Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.
3. Q:what is your delivery time?
A:The time of delivery is usually around 1 month. We can send out in 3 days if it has stock.
4. Q:What is your payment terms?
A:Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble EXW, FOB, CFR, CIF.
5.Q:What do your factory do regarding quality control?
A:We have gained ISO, CE,API authentication. From material to products, we inspect each process to keep good quality.
6. Q:How can you ensure what I got will be good?
A: Alibaba will act as our guarantor. If the product fails the inspection before leaving the factory, you can refuse to accept the goods.
7. Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ; we respect every customer as our friend and we sincerely do business and make friends with them. No matter where they come from.
