Hot Dipped Galvanized Steel Corrugated Roofing Sheets

Basic Information
Place of Origin: Shandong, China
Brand Name: Chengshun
Certification: CE, ISO, SGS, etc.
Model Number: YX14-65-850, YX35-130-780, YX71-380-760, YX51-410-820, YX8-130-910, etc.
Product Name: Galvanized Roofing Sheet Thickness: 0.12-3mm Or As Required
Length: 4ft/6ft/8ft/6000mm Or Customized Zinc Coat: 30-275g/m2
Surface Treatment: Hot Dipped Galvanized Grade: DX51D,DX52D,JIS G3302,AS 1397 G550 / ASTM A653,
Technique: Cold Rolled,Hot Rolled Shape: Trapezoid/wave/glaze/angled, Etc.
High Light:

910mm galvanised corrugated roofing sheets

,

8ft Corrugated Gi Roof

,

910mm Galvanised Corrugated Gi Roof

Hot Dipped Galvanized Steel Corrugated Roofing Sheets 0 HOT DIPPED GALVANIZED STEEL CORRUGATED ROOFING SHEETS

Galvanized steel roofing sheets hot dipped are to make the molten metal react with the iron matrix to produce an alloy layer, so that the matrix and the coating are combined. Hot dipped galvanized steel roofing sheets are to first pickling the iron and steel parts, in order to remove the iron oxide on the surface of the iron and steel parts. After pickling, it is cleaned in the tank of ammonium chloride or zinc chloride aqueous solution or mixed aqueous solution of ammonium chloride and zinc chloride, and then sent into the hot dip plating tank. Hot dip galvanizing corrugated roofing plate has the advantages of uniform zinc coating, strong adhesion and long service life.

Our company is a professional galvanized steel corrugated sheet manufacturer with ISO CE certificates and big factories of 50 000 tons per month productivity. We supply galvanized steel roofing sheets from zinc coat Z30 to Z275gsm, including hot dipped galvanized and electro-galvanized roofing sheets, T shaped IBR, wave shaped, trapezoidal, angled shape, glazed tile and other types available. We have large stock for fast delivery and offer free sample and customization service. Main markets distributing in North America, South America, Africa, Southeast Asia as well as Oceania, our company built stable cooperation with customers from more than 100 countries and regions.

Hot Dipped Galvanized Steel Corrugated Roofing Sheets 0 PARAMETER OF HOT DIPPED GALVANIZED ROOFING SHEETS



Product Name Hot Dipped Glavanized steel corrugated roofing sheet
Thickness 0.12-1mm or customized
Model Number YX25-210-840/1050, YX28-205-820/1025, YX25-250-1000,
YX30-245-980, YX35-125-750/875, YX35-238-950, YX35-190-760/950, YX35-280-840, YX38-300-900,
YX51-410-820, YX51-360, YX60-490, YX63-475, YX65-470, YX71-380-760, YX75-605,
YX92-337.5-675, YX130-300-600, YX114-300-600, YX114-333-666, etc.
Effective Width 360mm, 470mm, 475mm, 490mm, 600mm, 605mm, 608mm, 666mm, 675mm, 750mm, 760mm, 820mm, 840mm, 875mm, 900mm, 950mm, 960mm, 980mm, 1000mm, 1050mm, 1025mm, etc.
4'ft, 6'ft, 8'ft, 9'ft, 10'ft, 12'ft,etc.

Length 1000-12000mm or as required
Zinc Coat 30-275g/sm
Tolerance ±1%
Types Wave shape, Trapzoidal T shape, Angled shape, etc.
Bundle Weight 3-8 tons or as required
Surface Spangle big spangle, regular spangle, small spangle, minimum spangle, zero spangle.
Surface Treatment Chromate, Oiled, Lacquer Seal, Phosphating, Ant-ifinger, etc.
Service Life 20-30 years
Application Building industry 1) Roof 2) Wall 3) Ceiling 4) Fence
Household appliance
Container, etc.
Material Grade

DX51D DX52D DX53D DX54D

DC51D DC52D DC53D DC54D
SGCC, SGCH,SGC340 SGC400 SGC440 SGC490 SGC570
SGHC SGH340 SGH400 SGH440 SGH490 SGH540
S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD
Q235B Q345B Q420C Q460C
SS400 SS540 S235 S355
A36 A572 G50 G60

Standard ASME, ASTM, EN, BS, GB, DIN, JIS etc
Coating Process Top: Double Coated & Double Drying
Bottom: Double Coated & Double Drying, Single Coated & Double Drying
Supply Ability 500 000 tons/month
Delivery Time Stock inventory goods: within 5 days,
Customized product: 7-15 days for customized size
Packing Export standard package or as required
waterproof paper+plastic film+iron packing+strip bunding+wooden or steel pallet
Loading Port Tianjin, Qingdao, Shanghai or Guangzhou.



Hot Dipped Galvanized Steel Corrugated Roofing Sheets 0 PRODUCT DETAIL DISPLAY OF HOT DIPPED GALVANIZED ROOFING SHEETS

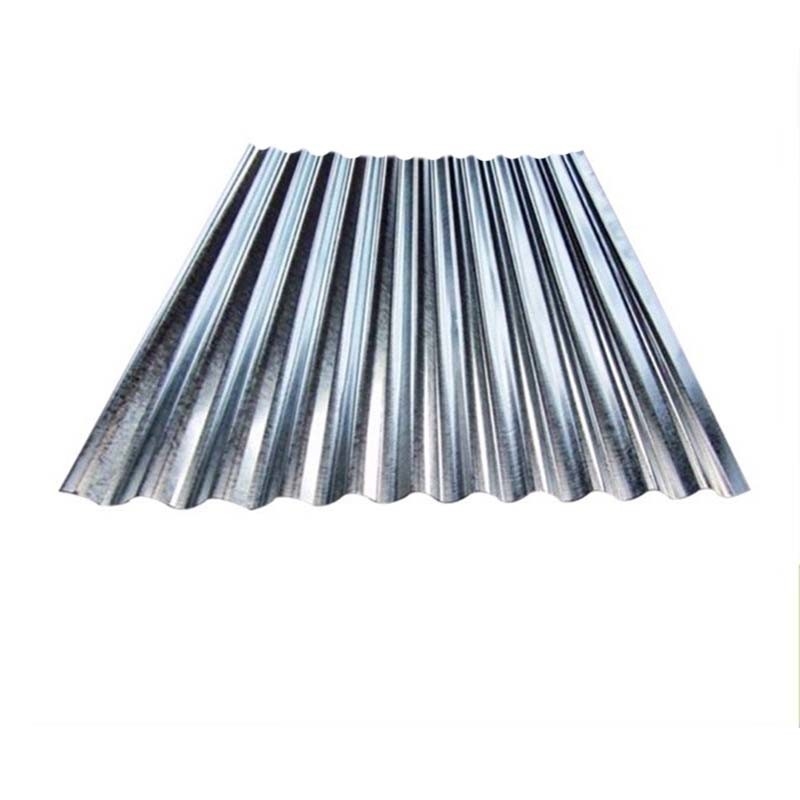

wave shaped roof plates Hot Dipped Galvanized Steel Corrugated Roofing Sheets

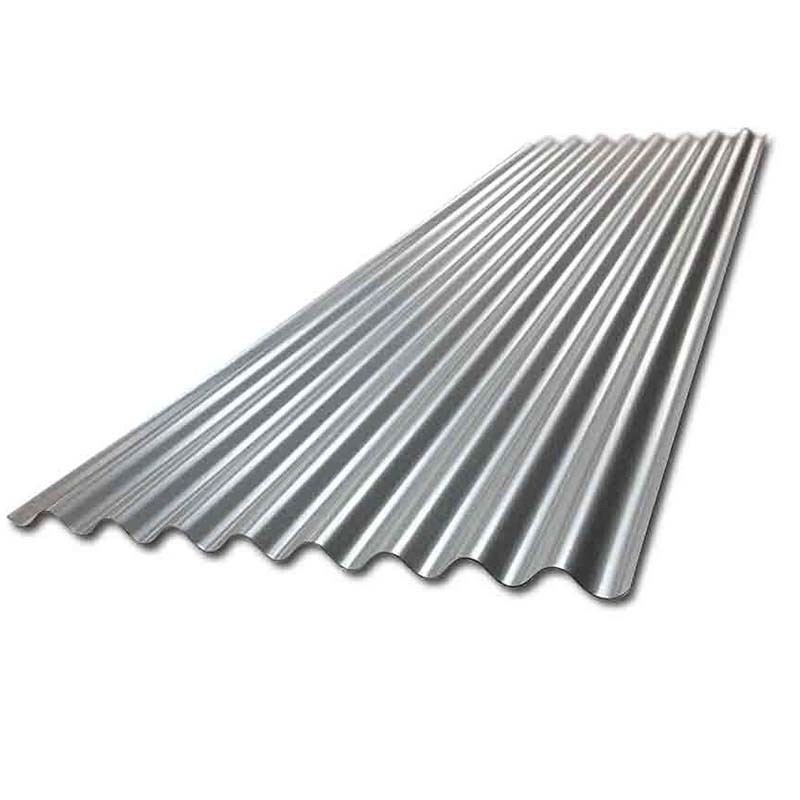

Wave Shaped Hot Dipped Galvanized Steel Roofing Sheets

large stock factory supplier of Trapezoidal T shaped Hot Dipped Galvanized Steel Corrugated Roofing Sheets

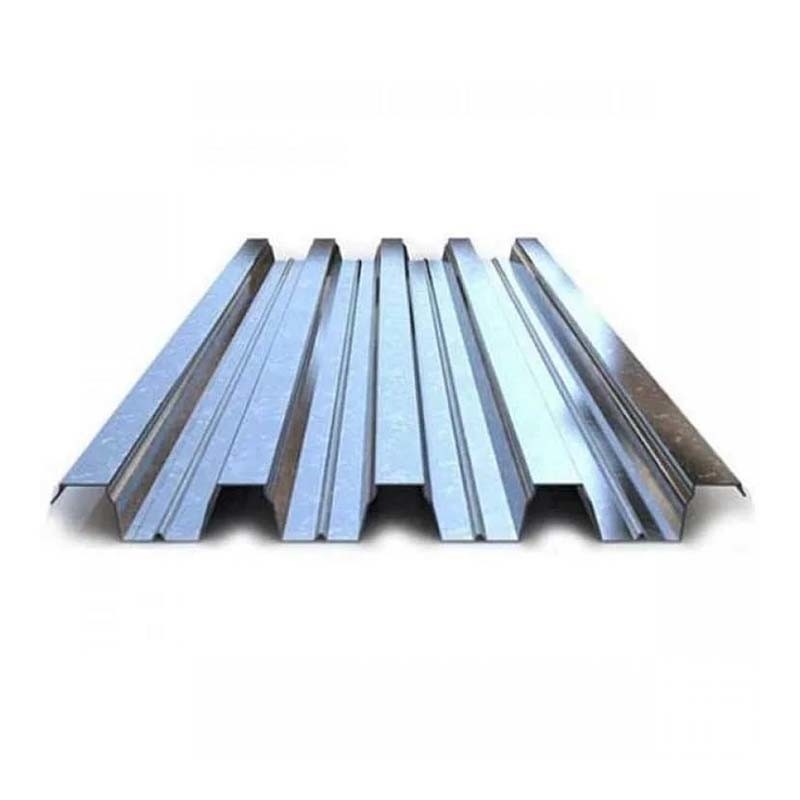

Trapezoidal T shaped Hot Dipped Galvanized Steel Corrugated Roofing Sheets

Manufacturer of Trapezoidal T shaped Hot Dipped Galvanized Steel Corrugated Roofing Sheets

Angled Shape Hot Dipped Galvanized Steel Corrugated Roofing Sheets

Hot Dipped Galvanized Steel Corrugated Roofing Sheets 0 PACKAGING OF HOT DIPPED GALVANIZED ROOFING SHEETS

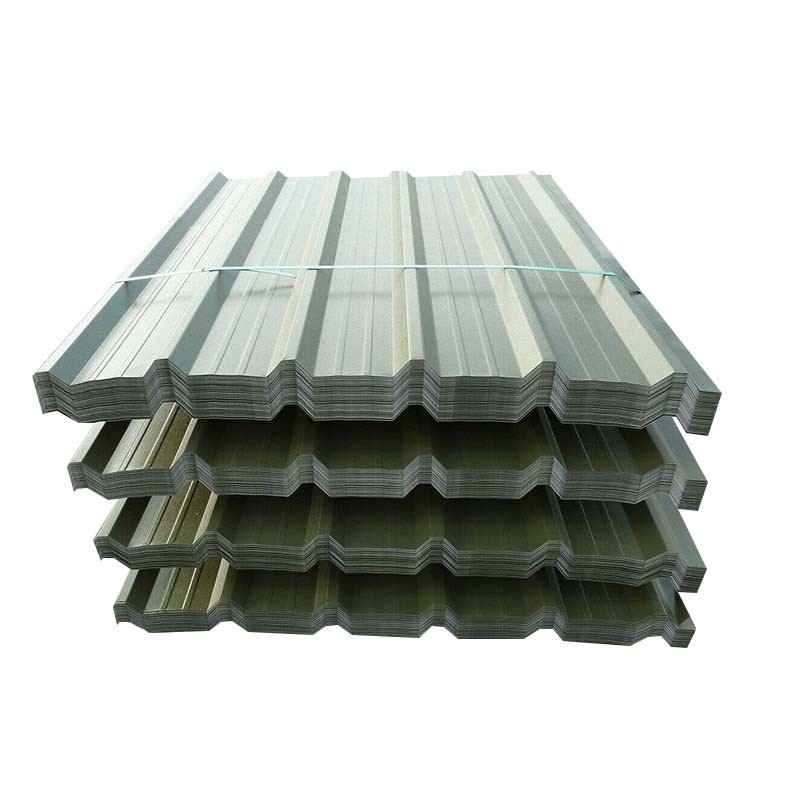

water proof package of Hot Dipped Galvanized Steel Corrugated Roofing Sheets

Hot Dipped Galvanized Steel Corrugated Roofing Sheets 8 QUALITY TEST AND WEIGHIING OF HOT DIPPED GALVANIZED ROOFING SHEETS

Hot Dipped Galvanized Steel Corrugated Roofing Sheets weighing actual quantity factory manufacturerHot Dipped Galvanized Steel Corrugated Roofing Sheets quality test factory manufacturer

Hot Dipped Galvanized Steel Corrugated Roofing Sheets 8 APPLICATION OF HOT DIPPED GALVANIZED ROOFING SHEETS

Hot Dipped Galvanized Steel Corrugated Roofing Sheets for workshop building factory manufacturerHot Dipped Galvanized Steel Corrugated Roofing Sheets for roof bosrds and container building factory manufacturerHot Dipped Galvanized Steel Corrugated Roofing Sheets for warehouse building factory manufacturer

Hot Dipped Galvanized Steel Corrugated Roofing Sheets 8 PRODUCTION PROCESS OF HOT DIPPED GALVANIZED ROOFING SHEETS

Hot Dipped Galvanized Steel Corrugated Roofing Sheets production process of factory manufacturerHot Dipped Galvanized Steel Corrugated Roofing Sheets production process of factory manufacturerHot Dipped Galvanized Steel Corrugated Roofing Sheets production process of factory manufacturer

Hot Dipped Galvanized Steel Corrugated Roofing Sheets 8 COMPANY INTRODUCTION OF HOT DIPPED GALVANIZED ROOFING SHEETS

large factory supplier of HOT DIPPED GALVANIZED ROOFING SHEETSlarge factory exporter of HOT DIPPED GALVANIZED ROOFING SHEETSlarge factory exporter of Hot Dipped Galvanized Steel Corrugated Roofing Sheets

Hot Dipped Galvanized Steel Corrugated Roofing Sheets 8 CERTIFICATE OF HOT DIPPED GALVANIZED ROOFING SHEETS

HOT DIPPED GALVANIZED ROOFING SHEETS QUALIFIED exporter with CE ISO certificates

Hot Dipped Galvanized Steel Corrugated Roofing Sheets 0 FAQ

1. Q: Are you a factory or trading company?
A: We are a Chinese manufacture of steel pipes with both factories and trading companies.
2. Q: Can I get samples before order?
A: Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.
3. Q:what is your delivery time?
A:The time of delivery is usually around 1 month. We can send out in 3 days if it has stock.
4. Q:What is your payment terms?
A:Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble EXW, FOB, CFR, CIF.
5.Q:What do your factory do regarding quality control?
A:We have gained ISO, CE,API authentication. From material to products, we inspect each process to keep good quality.
6. Q:How can you ensure what I got will be good?
A: Alibaba will act as our guarantor. If the product fails the inspection before leaving the factory, you can refuse to accept the goods.
7. Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ; we respect every customer as our friend and we sincerely do business and make friends with them. No matter where they come from.
