| Place of Origin: | Shandong, China |
|---|---|
| Brand Name: | Chengshun |
| Certification: | CE, ISO 9001 |
| Model Number: | YX25-196-980, YX25-196-780, YX28-207-1035, YX28-207-828, etc. |
| Type: | Glazed Steel Tile Color Coated Roof Sheet | Application: | Roofing Panels, Construction, Etc. |
|---|---|---|---|
| Material Grade: | DX51D DX52D DX53D DX54D SGCC SGCH | Processing Service: | Welding, Punching, Cutting, Bending, Decoiling |
| Color: | All Ral Color Or Customized Patterns | Standard: | JIS, ASTM, GB, Etc. |
| Zinc Coat: | Z30-Z275/AZ30-AZ275gsm | Thickness: | 0.12-3.0mm Or As Required |
| High Light: | DX51D Color Coated Roof Sheet 0.3mm,Color Coated Roof Sheet 0.3mm PPGL,0.3mm PPGL Colour Coated Galvalume Sheet |
||
GLAZED TILE COLOR COATED STEEL ROOF SHEET Color coated roof sheet antique steel glazed tile type is a new type of building material, using color steel plate as the base plate, made by special processing, paint and molding. Color coated steel glazed tile roofing sheets are rich in color, classical and elegant, so it can make your building more attractive. With its light weight, high strength, good water resistance, convenient installation and other characteristics, color coated corrugated steel glazed roof sheet can be widely used in villa roof, urban flat slope, tourist scenic area buildings, etc.
Our company is a professional color coated roofing sheet manufacturer with ISO CE certificates and big factories of 50 000 tons per month productivity. We supply color coated roofing sheets from color coat 10-35um or more, including galvanized and galvalume, aluminium and stainless base sheet, T shaped IBR, wave shaped, trapezoidal, angled shape, glazed tile and other types available. We have large stock for fast delivery and offer free sample and customization service. Main markets distributing in North America, South America, Africa, Southeast Asia as well as Oceania, our company built stable cooperation with customers from more than 100 countries and regions.
PARAMETER OF GLAZED TILE COLOR COATED ROOF SHEET
| Product Name | Color coated steel roof sheets | |||
| Thickness | 0.12-3mm or customized | |||
| Model Number |

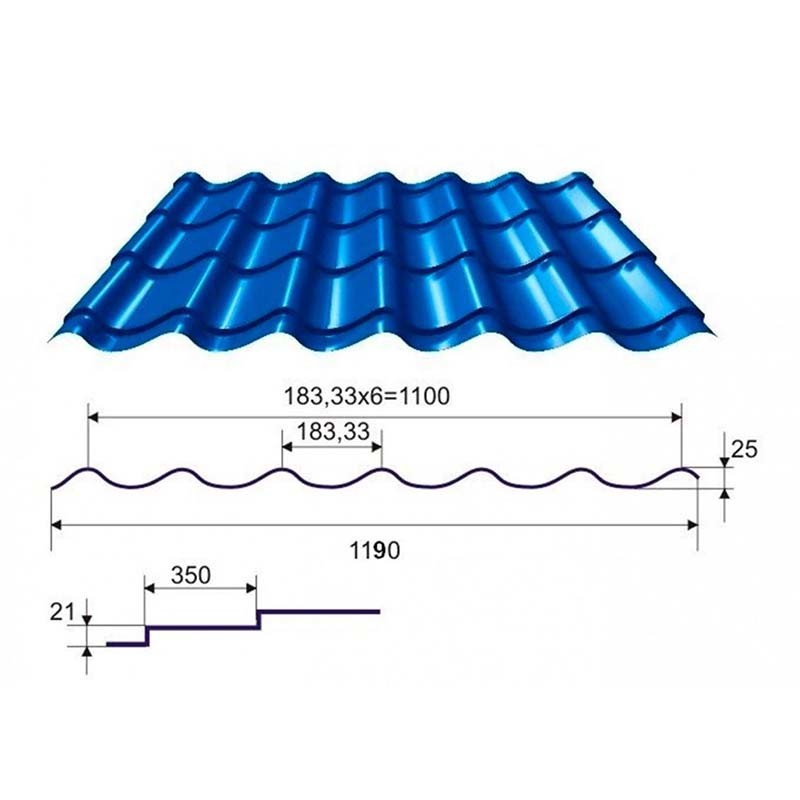

Glazed tile: YX25-196-980, YX25-196-780, YX28-207-1035, YX28-207-828, etc.
|
|||
| Effective Width | 750mm, 760mm, 820mm, 840mm, 875mm, 900mm, 950mm, 960mm, 980mm, 1000mm, 1050mm, 1025mm, etc. 3'ft, 4'ft, 6'ft, 8'ft, 9'ft, 10'ft, 12'ft,etc. |
|||
| Length | 1000-18000mm or as required | |||
| Zinc Coat | 30-275g/sm | |||
| Color Coat | 10-35um, 10/15um, 15/25um, or customized. | |||
| Color Coat Type | PE (polyester), SMP (silicon modified polyester), HDP (high durability polyester), PVDF (polyvinylidene fluoride), etc. | |||
| Color | All Ral Color, or customized pattern. | |||
| Tolerance | ±1% | |||
| Types | Glazed tile steel roofing sheets, etc. | |||
| Bundle Weight | 3-8 tons or as required | |||
| Service Life | 20-50 years | |||
| Material Grade | DX51D DX52D DX53D DX54D SGCC, SGCH,SGC340 SGC400 SGC440 SGC490 SGC570 SGHC SGH340 SGH400 SGH440 SGH490 SGH540 S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD Q235B Q345B Q420C Q460C SS400 SS540 S235 S355 A36 A572 G50 G60 |
|||
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS JIS G3302, JIS G3313, GB/T2518-88, GB11253-89, ASTM A1008-2000, EN10169, etc. |
|||
| Application | Industrial and civil buildings, Roof panels of long span steel structure, Interior and exterior wall decoration, etc. |
|||
| Supply Ability | 500 000 tons/month | |||
| Logo Printing Service | Available | |||
| Sample | Free | |||
| Packing | Export standard package or as required waterproof paper+plastic film+iron packing+strip bunding+wooden or steel pallet |
|||
| Loading Port | Tianjin, Qingdao, Shanghai or Guangzhou. | |||
PRODUCT DETAIL DISPLAY OF GLAZED TILE COLOR COATED ROOF SHEET

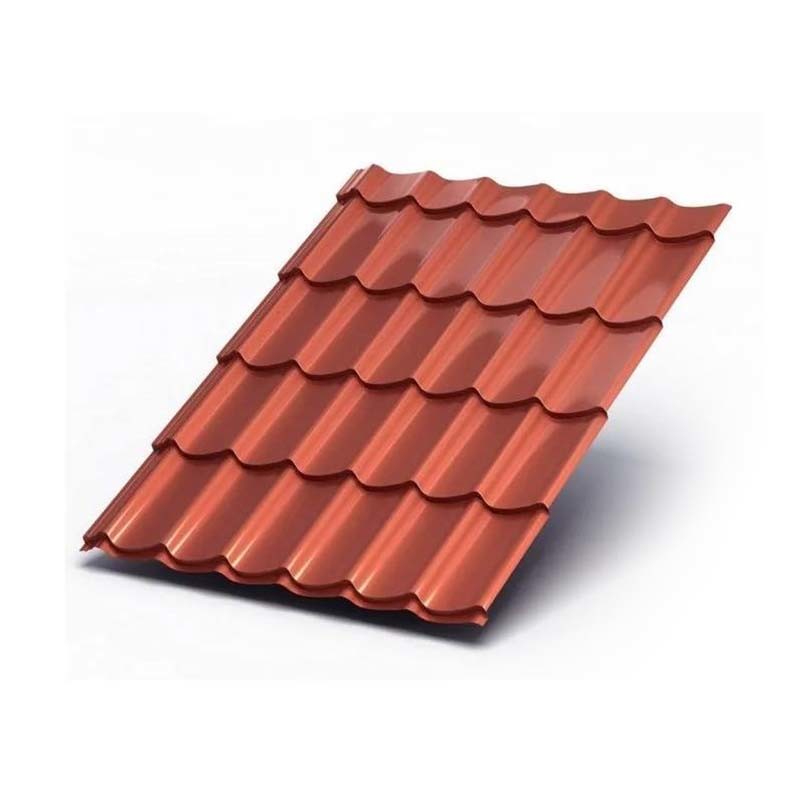

All Ral Color Customized Glazed Tile Color Coated Steel Roof Sheet

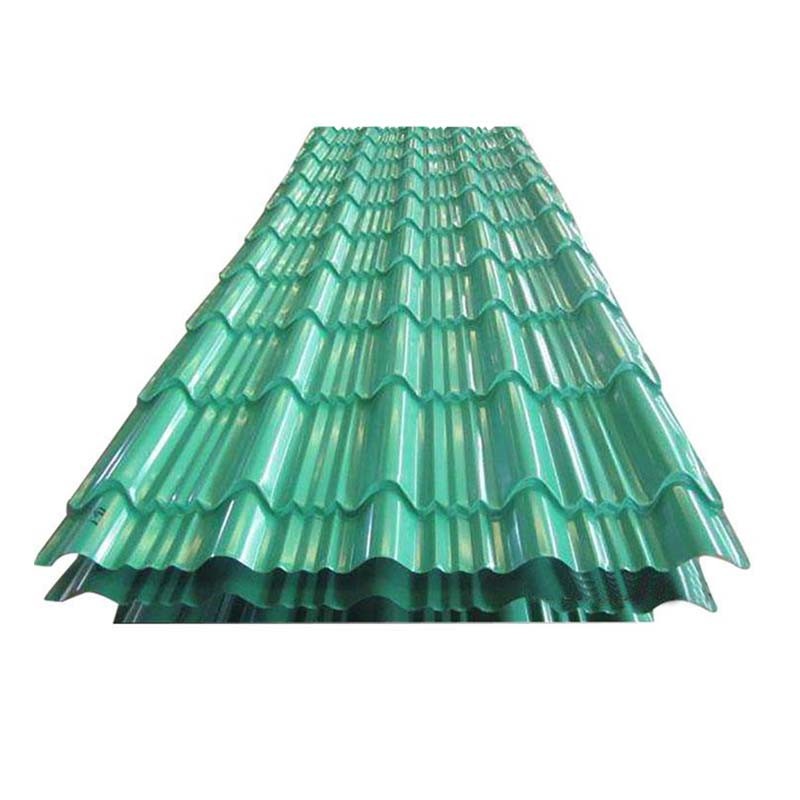

High Gloss Surface Glazed Tile Color Coated Steel Roof Sheet

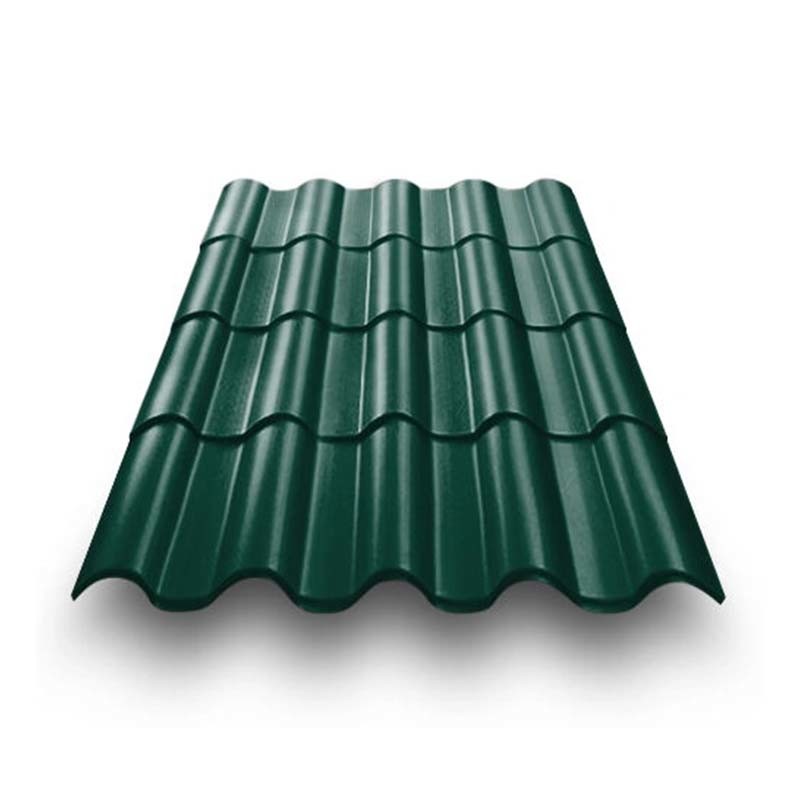

Widely Used Glazed Tile Color Coated Steel Roof Sheet
PACKAGING OF GLAZED TILE COLOR COATED ROOF SHEET
QUALITY TEST AND WEIGHING OF GLAZED TILE COLOR COATED ROOF SHEET
APPLICATION OF GLAZED TILE COLOR COATED ROOF SHEET
PRODUCTION PROCESS OF GLAZED TILE COLOR COATED ROOF SHEET
COMPANY INTRODUCTION OF GLAZED TILE COLOR COATED ROOF SHEET
COMPANY INTRODUCTION OF GLAZED TILE COLOR COATED ROOF SHEET
FAQ1. Q: Are you a factory or trading company?
A: We are a Chinese manufacture of steel pipes with both factories and trading companies.
2. Q: Can I get samples before order?
A: Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.
3. Q:what is your delivery time?
A:The time of delivery is usually around 1 month. We can send out in 3 days if it has stock.
4. Q:What is your payment terms?
A:Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble EXW, FOB, CFR, CIF.
5.Q:What do your factory do regarding quality control?
A:We have gained ISO, CE,API authentication. From material to products, we inspect each process to keep good quality.
6. Q:How can you ensure what I got will be good?
A: Alibaba will act as our guarantor. If the product fails the inspection before leaving the factory, you can refuse to accept the goods.
7. Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ; we respect every customer as our friend and we sincerely do business and make friends with them. No matter where they come from.
