| Place of Origin: | Shandong, China |
|---|---|
| Brand Name: | Chengshun |
| Certification: | AiSi, ASTM, bs, DIN, GB, JIS |
| Model Number: | YX14-65-850, YX51-360, YX25-210-680, YX25-196-980, etc. |
| Color: | All Ral Color Or Customized According To Drawing | Color Coat: | 10/15, 15/20 Or As Required |
|---|---|---|---|
| Base Sheet: | Hot Dipped Galvanized Steel Sheets, PPGI | Zinc Coat: | 30-275g/m2 |
| Thickness: | 0.12-3mm Or As Required | Width: | 600-1500mm Or As Required |
| Length: | 1-18meters Or Customized | Organic Coat: | PE, SMP, HDP, PVDF, Etc. |
| High Light: | Z60 Colour Coated Steel Sheet,Z30 Colour Coated Steel Sheet 0.12mm,0.12mm Galvanized Ppgi Colour Coated Sheet |
||
HOT DIPPED COLOR COATED GALVANIZED ROOF SHEET PPGIColor coated roof sheet PPGI is to apply the organic coating on the hot dipped galvanized steel sheet products. In addition to the protective effect of zinc coat, the organic coating on the surface also plays the role of isolation protection and rust prevention, and the service life is longer than that of the hot galvanized sheets. The zinc content of hot-dip galvanized substrate is generally 180g/m2 (double-sided), and the maximum zinc content of hot-dip galvanized substrate used for external construction is 275g/m2.
Our company is a professional color coated roofing sheet manufacturer with ISO CE certificates and big factories of 50 000 tons per month productivity. We supply color coated roofing sheets from color coat 10-35um or more, including galvanized and galvalume, aluminium and stainless base sheet, T shaped IBR, wave shaped, trapezoidal, angled shape, glazed tile and other types available. We have large stock for fast delivery and offer free sample and customization service. Main markets distributing in North America, South America, Africa, Southeast Asia as well as Oceania, our company built stable cooperation with customers from more than 100 countries and regions.
PARAMETER OF PPGI COLOR COATED ROOF SHEET
| Product Name | Color coated steel roof sheets | |||
| Thickness | 0.12-3mm or customized | |||
| Model Number | Wave shape: YX14-65-850, YX35-130-780, YX18-76-836/988, etc. Angled shape: YX51-360, YX60-490, YX75-605, YX71-380-760, YX51-410-820, etc. Trapzoidal T shape: YX25-210-680, YX25-200-1000, YX8-250-1000, YX18-100-1100, YX8-130-910, YX35-190-760-950, etc. Glazed tile: YX25-196-980, YX25-196-780, YX28-207-1035, YX28-207-828 YX25-210-840/1050, YX28-205-820/1025, YX25-250-1000, YX30-245-980, YX35-125-750/875, YX35-238-950, YX35-190-760/950, YX35-280-840, YX38-300-900, YX51-410-820, YX51-360, YX60-490, YX63-475, YX65-470, YX71-380-760, YX75-605, YX92-337.5-675, YX130-300-600, YX114-300-600, YX114-333-666, etc. |
|||
| Effective Width | 750mm, 760mm, 820mm, 840mm, 875mm, 900mm, 950mm, 960mm, 980mm, 1000mm, 1050mm, 1025mm, etc. 3'ft, 4'ft, 6'ft, 8'ft, 9'ft, 10'ft, 12'ft,etc. |
|||
| Length | 1000-18000mm or as required | |||
| Zinc Coat | 30-275g/sm | |||
| Color Coat | 10-35um, 10/15um, 15/25um, or customized. | |||
| Color Coat Type | PE (polyester), SMP (silicon modified polyester), HDP (high durability polyester), PVDF (polyvinylidene fluoride), etc. | |||
| Color | All Ral Color, or customized pattern. | |||
| Tolerance | ±1% | |||
| Types | Wave shape, Trapzoidal T shape, Angled shape, Glazed tile, Sandwich Panels, etc. | |||
| Bundle Weight | 3-8 tons or as required | |||
| Service Life | 20-50 years | |||
| Material Grade | DX51D DX52D DX53D DX54D SGCC, SGCH,SGC340 SGC400 SGC440 SGC490 SGC570 SGHC SGH340 SGH400 SGH440 SGH490 SGH540 S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD Q235B Q345B Q420C Q460C SS400 SS540 S235 S355 A36 A572 G50 G60 |
|||
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS JIS G3302, JIS G3313, GB/T2518-88, GB11253-89, ASTM A1008-2000, EN10169, etc. |
|||
| Application | Industrial and civil buildings, Roof panels of long span steel structure, Interior and exterior wall decoration, etc. |
|||
| Supply Ability | 500 000 tons/month | |||
| Logo Printing Service | Available | |||
| Sample | Free | |||
| Packing | Export standard package or as required waterproof paper+plastic film+iron packing+strip bunding+wooden or steel pallet |
|||
| Loading Port | Tianjin, Qingdao, Shanghai or Guangzhou. | |||
PRODUCT DETAIL DISPLAY OF PPGI COLOR COATED ROOF SHEET

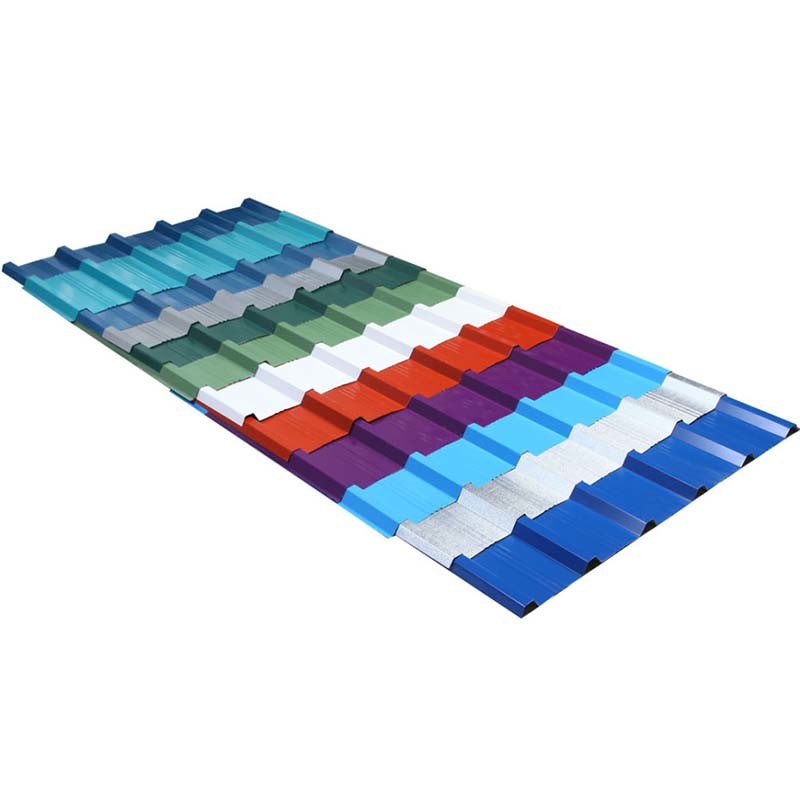

Full Ral Color Coated Galvanized Steel Roof Sheet PPGI

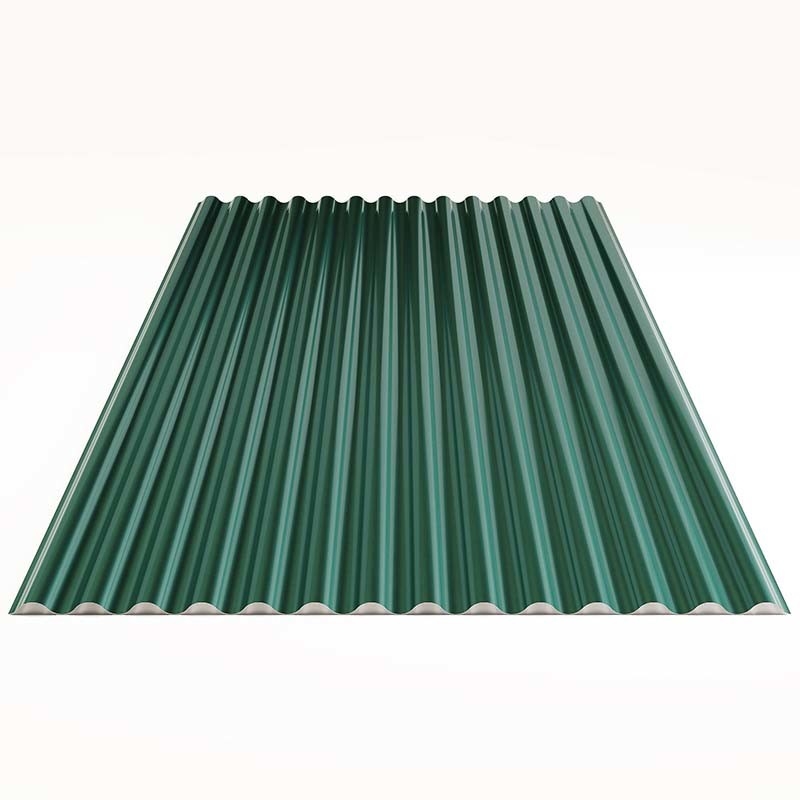

Wave Shaped Color Coated Galvanized Steel Roof Sheet PPGI

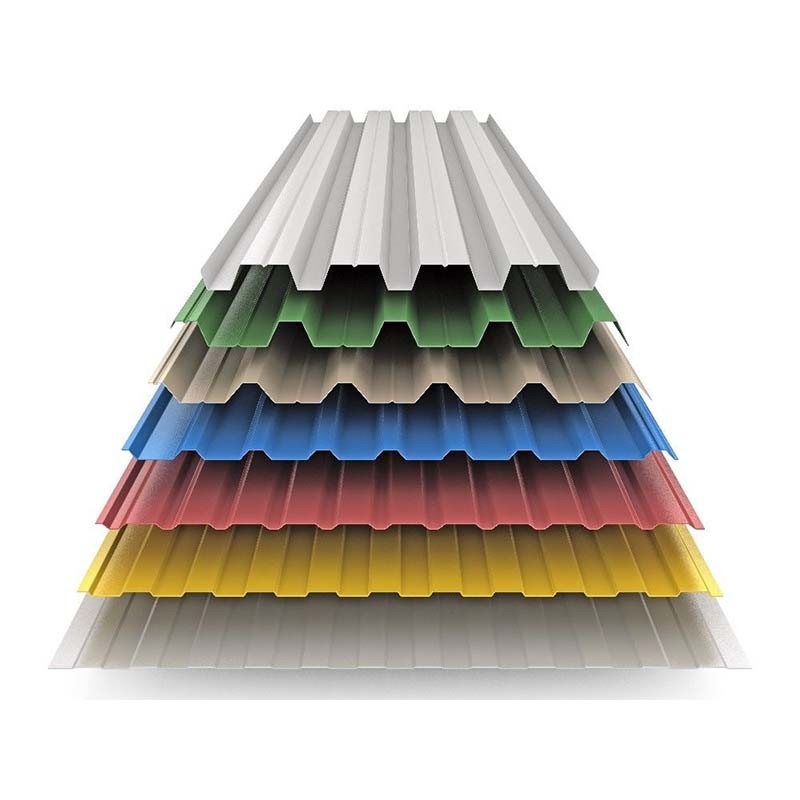

T Shaped Color Coated Galvanized Steel Roof Sheet PPGI
Angled Shaped Color Coated Galvanized Steel Roof Sheet PPGI

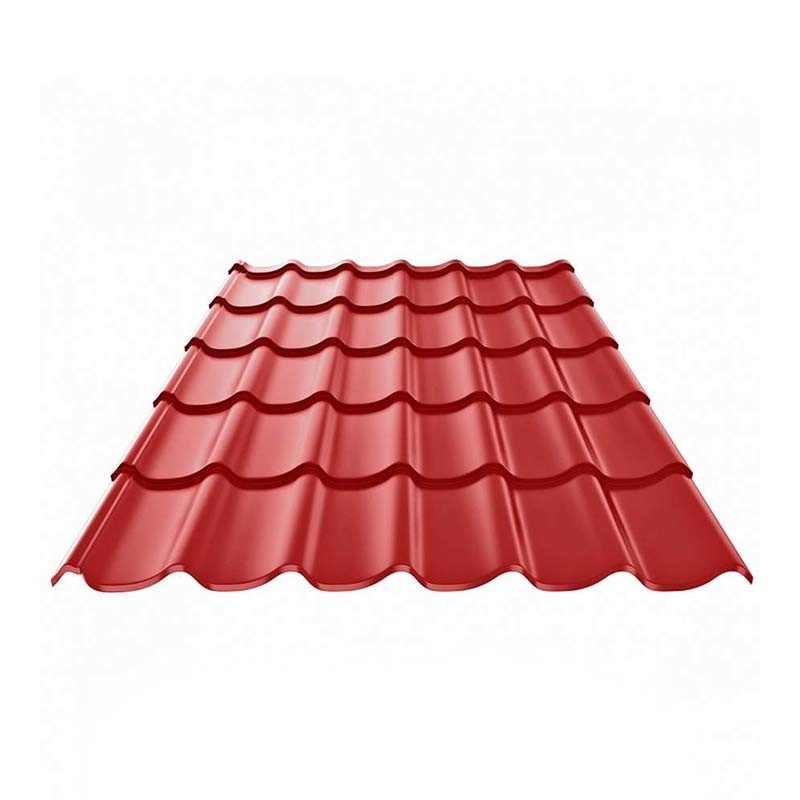

Glazed Tile Type Color Coated Galvanized Steel Roof Sheet PPGI
PACKAGING OF PPGI COLOR COATED ROOF SHEET
QUALITY TEST AND WEIGHING OF PPGI COLOR COATED ROOF SHEET
APPLICATION OF PPGI COLOR COATED ROOF SHEET
PRODUCTION PROCESS OF PPGI COLOR COATED ROOF SHEET
COMPANY INTRODUCTION OF PPGI COLOR COATED ROOF SHEET
CERTIFICATE OF PPGI COLOR COATED ROOF SHEET
FAQ1. Q: Are you a factory or trading company?
A: We are a Chinese manufacture of steel pipes with both factories and trading companies.
2. Q: Can I get samples before order?
A: Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.
3. Q:what is your delivery time?
A:The time of delivery is usually around 1 month. We can send out in 3 days if it has stock.
4. Q:What is your payment terms?
A:Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble EXW, FOB, CFR, CIF.
5.Q:What do your factory do regarding quality control?
A:We have gained ISO, CE,API authentication. From material to products, we inspect each process to keep good quality.
6. Q:How can you ensure what I got will be good?
A: Alibaba will act as our guarantor. If the product fails the inspection before leaving the factory, you can refuse to accept the goods.
7. Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ; we respect every customer as our friend and we sincerely do business and make friends with them. No matter where they come from.
